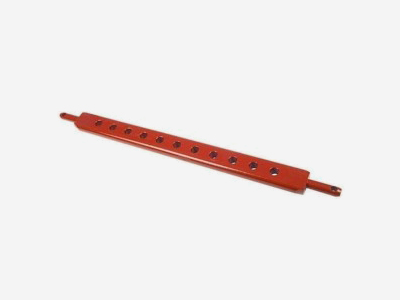

TRACTOR DRAW BAR, 3 POINT HITCH DRAW BAR, DRAW BAR, DRAW BAR HITCH TRACTOR ATTACHMENT, 3 POINT HITCH.
BROHAWK – We are the manufacturer, exporter, supplier, producer of Tractor Draw bar.
BROHAWK – We are the manufacturer, exporter, supplier, producer of Tractor Draw bar.

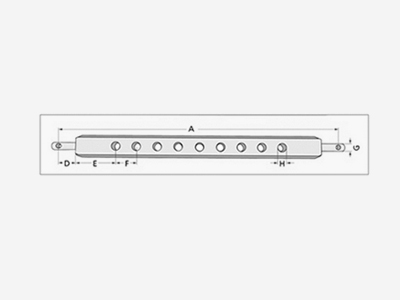

| Code No. | A | Width | Height | D | E | F | G | H | Holes |
|---|---|---|---|---|---|---|---|---|---|
| BE-0179 | 755 | 60 | 30 | 49.0 | 114.0 | 54.0 | 22.0 | 20.0 | 9 |
| BE-0180 | 770 | 80 | 40 | 56.0 | 16.5 | 16.6 | 28.5 | 26.5 | 3 |
| BE-0181 | 781 | 60 | 30 | 60.0 | 114.0 | 54.0 | 28.5 | 20.0 | 9 |
| BE-0182 | 861 | 80 | 40 | 60.3 | 122.0 | 83.0 | 28.5 | 26.5 | 7 |
| BE-0183 | 930 | 60 | 30 | 60.0 | 110.0 | 59.0 | 28.5 | 22.0 | 11 |
| BE-0184 | 930 | 80 | 40 | 55.0 | 110.0 | 100.0 | 28.5 | 28.0 | 7 |
| BE-0185 | 940 | 80 | 40 | 60.0 | 121.0 | 83.0 | 28.5 | 26.0 | 7 |
| BE-0186 | 962 | 60 | 30 | 60.0 | 181.0 | 80.0 | 28.5 | 25.0 | 7 |
| BE-0187 | 962 | 60 | 30 | 60.0 | 181.0 | 80.0 | 28.5 | 28.0 | 7 |
| BE-0188 | 962 | 80 | 30 | 50.0 | 90.0 | 80.0 | 28.5 | 33.0 | 9 |
| BE-0189 | 1085 | 80 | 40 | 60.0 | 202.3 | 140.0 | 28.5 | 25.4 | 5 |
| BE-0190 | 1085 | 80 | 40 | 60.0 | 151.0 | 110.0 | 36.0 | 32.0 | 7 |
| BE-0191 | 1085 | 90 | 45 | 60.0 | 82.0 | 80.0 | 36.0 | 33.0 | 11 |
| BE-0192 | 580 | 63 | 25 | 50.0 | 80.0 | 80.0 | 12.0 | 22.0 | 5 |
The weight and working data contained in this table are supplied for information only and are not binding. Specification and size can be altered as part of ongoing product modification/ improvement.
3 POINT LINKAGE KIT WHITE ZINC
