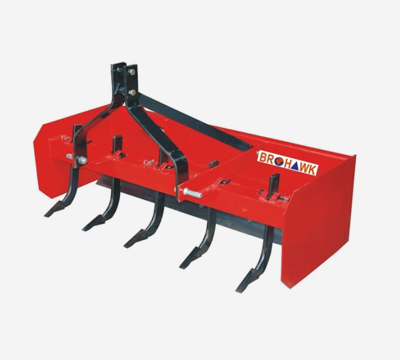

BOX SCRAPER, LANDSCAPE BOX SCRAPER, LANDSCAPE EQUPIMENT, BOX SCRAPER AGRICULTURE BOX SCRAPERBrohawk – We are the manufacturer, exporter, supplier, producer of Agriculture equipment- Box scrapper. Brohawk Series Box Scrapers are ideal for ripping, levelling, finish grading, and backfilling applications at commercial feedlots, outdoor arenas, building sites, and maintenance operations on farm and ranch lanes or roadways or constructions sites. The Box Scrapers are designed for Category 1- three point hitch or Quick-Hitch System mounting to tractors in the 30 hp range.
The rear backfill blade allows for backfilling trenches or foundations. The heavy duty mouldboard holds its shape under heavy loads. We are using four positioned heat treated shanks for longevity. The cutting blades are reversible so that both sides can be used before replacement. Heat treated tips are easily replaceable.
Box Scraper Specification:
| MODEL/SERIERS | BBX-4 | BBX-5 | BBX-6 | BBX-7 | BBX-8 |
|---|---|---|---|---|---|
| WORKING WIDTH | 48″ | 60″ | 72″ | 84″ | 96″ |
| HEIGHT OF MOLDBOARD | 17″ | 17″ | 17″ | 17″ | 17″ |
| DEPTH OF BUCKET | 22″ | 22″ | 22″ | 22″ | 22″ |
| OVERALL DEPTH | 31″ | 31″ | 31″ | 31″ | 31″ |
| OVERALL HEIGHT | 32″ | 35″ | 35″ | 35″ | 35″ |
| WEIGHT (POUNDS) | 312 | 370 | 438 | 506 | 574 |
| NUMBER OF SHANKS | 4 | 5 | 6 | 7 | 8 |
| MAXIMUM H.P. RATING | 25 | 35 | 40 | 40 | 40 |
| A-FRAME MATERIAL | 3/8" x 21/2" Flat Bar | ½" x 21/2" Flat Bar | ½" x 21/2" Flat Bar | ½" x 21/2" Flat Bar | ½" x 21/2" Flat Bar |
| LOWER HITCH | Bolted Pin | Bolted Pin | Bolted Pin | Bolted Pin | Bolted Pin |
The weight and working data contained in this table are supplied for information only and are not binding. Specification and size can be altered as part of ongoing product modification/ improvement.
