Farm Cultivator Bcm-230 & Bcm-280
Duct Foot Tiller /Cultivator Specification Bcm-240
FIELD CULTIVATOR, 3 POINT CULTIVATOR, TRACTOR CULTIVATOR, SOIL CULTIVATORS, TRACTOR TILLER, FARM CULTIVATOR, SPRING LOADED CULTIVATOR, TYNE CULTIVATOR, SPRING TYNE CULTIVATOR.
BROHAWK –We are the manufacturer, exporter, supplier, producer of Agriculture equipment -Spring loaded cultivator. Brohawk field cultivators are suitable in stone and root obstructed soil to break up soil, rip weeds and stir soil to prepare seed beds. It is designed for toughest operations to prepare seeds beds quickly and economically. When one tine strikes a hidden object, the other continues to work at the correct depth. Spring loaded tines fixed to the immensely strong main frame cannot move or strain out of position. Our high quality cultivators range in size, number of shanks, and rigidity for different soil type.
BROHAWK –We are the manufacturer, exporter, supplier, producer of Agriculture equipment -Spring loaded cultivator. Brohawk field cultivators are suitable in stone and root obstructed soil to break up soil, rip weeds and stir soil to prepare seed beds. It is designed for toughest operations to prepare seeds beds quickly and economically. When one tine strikes a hidden object, the other continues to work at the correct depth. Spring loaded tines fixed to the immensely strong main frame cannot move or strain out of position. Our high quality cultivators range in size, number of shanks, and rigidity for different soil type.

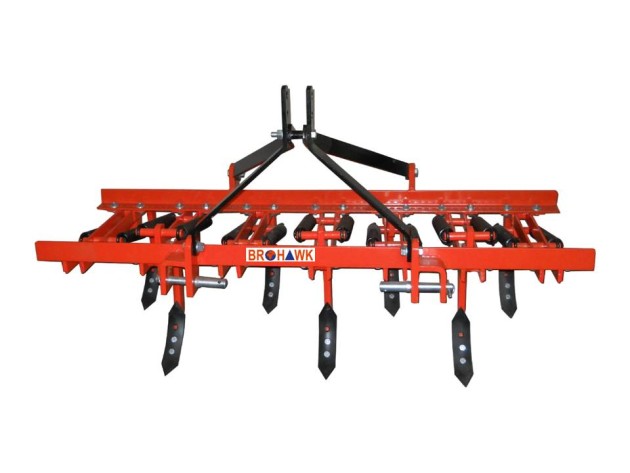

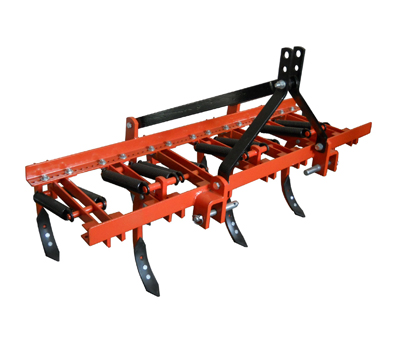

Cultivator Bc-230 (Medium Duty)
| Specification | 5 TINE BC-230 | 7 TINE BC-230 | 9 TINE BC-230 | 11 TINE BC-230 |
|---|---|---|---|---|
| Angle Channel | 65 × 8 mm | 65 × 8 mm | 65 × 8 mm | 65 × 8 mm |
| Spring | 10 mm WD, 50 mm OD, 28.5 Coils | 10 mm WD, 50 mm OD, 28.5 Coils | 10 mm WD, 50 mm OD, 28.5 Coils | 10 mm WD, 50 mm OD, 28.5 Coils |
| Tine Forged | 50 × 20 mm | 50 × 20 mm | 50 × 20 mm | 50 × 20 mm |
| Pairs (Flat) | 50 × 8 mm | 50 × 8 mm | 50 × 8 mm | 50 × 8 mm |
| Anchor Pin | 22 mm | 22 mm | 22 mm | 22 mm |
| Nuts | High Tensile | High Tensile | High Tensile | High Tensile |
| Frame Bolt | 1/2 × 1-1/4" | 1/2 × 1-1/4" | 1/2 × 1-1/4" | 1/2 × 1-1/4" |
| Tine Bolt | 5/8 × 2" | 5/8 × 2" | 5/8 × 2" | 5/8 × 2" |
| Linkage | 50 × 12 mm (Rear), 50 × 12 mm (Front) | 50 × 12 mm (Rear), 50 × 12 mm (Front) | 75 × 12 mm (Rear), 50 × 12 mm (Front) | 75 × 12 mm (Rear), 50 × 12 mm (Front) |
| Shovel | 8 mm EN-45 | 8 mm EN-45 | 8 mm EN-45 | 8 mm EN-45 |
| Length | 1160 mm | 1670 mm | 2150 mm | 2440 mm |
| Width | 850 mm | 850 mm | 850 mm | 850 mm |
| Height | 585 mm | 585 mm | 585 mm | 585 mm |
| Tiller Pin | 22 mm | 22 mm | 22 mm | 25 mm |
| Weight | 120 kg | 145 kg | 200 kg | 240 kg |

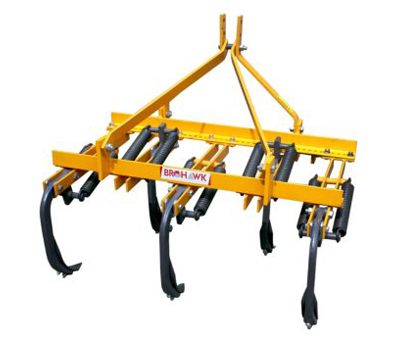

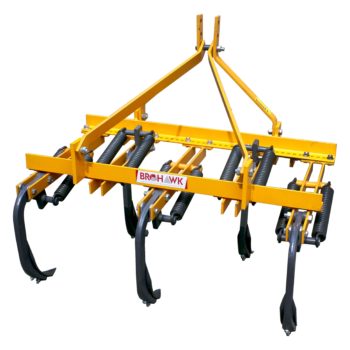

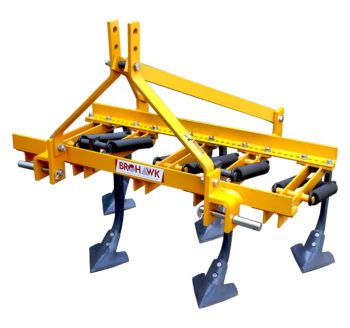

Duck Foot Tiller/Cultivator
Duct Foot Tiller /Cultivator Specification Bcm-240
| Description | BC 240-5 | BC 240-7 | BC 240-9 | BC 240-11 |
|---|---|---|---|---|
| Angle (65 × 8 mm) | 1170 mm | 1675 mm | 2160 mm | 2415 mm |
| Flat (75 × 12 mm) | 630 mm | 630 mm | 630 mm | 630 mm |
| Flat (50 × 12 mm) | 786 mm | 786 mm | 786 mm | 786 mm |
| Tine | 50 × 25 mm | 50 × 25 mm | 50 × 25 mm | 50 × 25 mm |
| Spring | 10 mm WD, 49 mm OD, 26 Coils | 10 mm WD, 49 mm OD, 26 Coils | 10 mm WD, 49 mm OD, 26 Coils | 10 mm WD, 49 mm OD, 26 Coils |
| Duck Sweep | 200 mm | 200 mm | 200 mm | 200 mm |
| Double Tiller Pin | Cat 1 / Cat 2 | Cat 1 / Cat 2 | Cat 1 / Cat 2 | Cat 1 / Cat 2 |
| U Bolt | M12 × 19 | M12 × 19 | M12 × 19 | M12 × 19 |
| Spacer Pin with Groove | 25 mm | 25 mm | 25 mm | 25 mm |
| Front Tine Assembly | 2 | 3 | 4 | 5 |
| Rear Tine Assembly | 3 | 4 | 5 | 6 |
| Overall Width | 850 mm | 850 mm | 850 mm | 850 mm |
| Overall Length | 1150 mm | 1675 mm | 2150 mm | 2410 mm |
| Overall Height | 1080 mm | 1080 mm | 1080 mm | 1080 mm |
