Description	BC 240-5	BC 240-7	BC 240-9	BC 240-11
Angle (65 × 8 mm)	1170 mm	1675 mm	2160 mm	2415 mm
Flat (75 × 12 mm)	630 mm	630 mm	630 mm	630 mm
Flat (50 × 12 mm)	786 mm	786 mm	786 mm	786 mm
Tine	50 × 25 mm	50 × 25 mm	50 × 25 mm	50 × 25 mm
Spring	10 mm WD, 49 mm OD, 26 Coils	10 mm WD, 49 mm OD, 26 Coils	10 mm WD, 49 mm OD, 26 Coils	10 mm WD, 49 mm OD, 26 Coils
Duck Sweep	200 mm	200 mm	200 mm	200 mm
Double Tiller Pin	Cat 1 / Cat 2	Cat 1 / Cat 2	Cat 1 / Cat 2	Cat 1 / Cat 2
U Bolt	M12 × 19	M12 × 19	M12 × 19	M12 × 19
Spacer Pin with Groove	25 mm	25 mm	25 mm	25 mm
Front Tine Assembly	2	3	4	5
Rear Tine Assembly	3	4	5	6
Overall Width	850 mm	850 mm	850 mm	850 mm
Overall Length	1150 mm	1675 mm	2150 mm	2410 mm
Overall Height	1080 mm	1080 mm	1080 mm	1080 mm

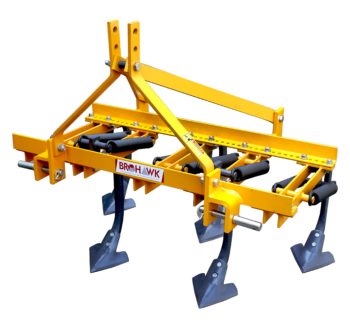

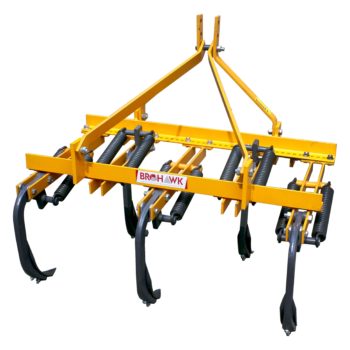

Duck Foot Tiller / Cultivator – BCM-240
