Tiller (Cultivator)

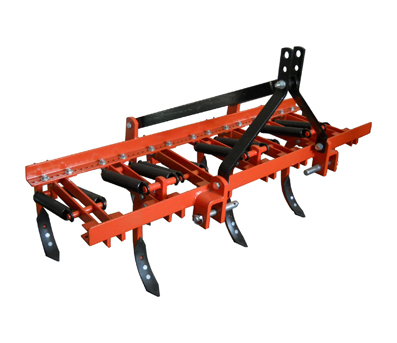

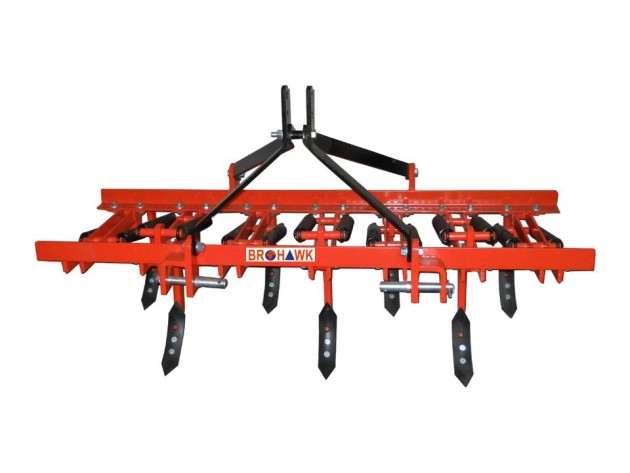

Farm Cultivator Bcm-230 & Bcm-280
FIELD CULTIVATOR, 3 POINT CULTIVATOR, TRACTOR CULTIVATOR, SOIL CULTIVATORS, TRACTOR TILLER, FARM CULTIVATOR, SPRING LOADED CULTIVATOR, TYNE CULTIVATOR, SPRING TYNE CULTIVATOR.RIGID SHANK CULTIVATOR
BROHAWK –We are the manufacturer, exporter, supplier, producer of Agriculture equipment -Spring loaded cultivator. Brohawk field cultivators are suitable in stone and root obstructed soil to break up soil, rip weeds and stir soil to prepare seed beds. It is designed for toughest operations to prepare seeds beds quickly and economically. When one tine strikes a hidden object, the other continues to work at the correct depth. Spring loaded tines fixed to the immensely strong main frame cannot move or strain out of position. Our high quality cultivators range in size, number of shanks, and rigidity for different soil type.
BROHAWK –We are the manufacturer, exporter, supplier, producer of Agriculture equipment -Spring loaded cultivator. Brohawk field cultivators are suitable in stone and root obstructed soil to break up soil, rip weeds and stir soil to prepare seed beds. It is designed for toughest operations to prepare seeds beds quickly and economically. When one tine strikes a hidden object, the other continues to work at the correct depth. Spring loaded tines fixed to the immensely strong main frame cannot move or strain out of position. Our high quality cultivators range in size, number of shanks, and rigidity for different soil type.
Cultivator Bc-230 (Medium Duty)
| Specification | 5 TINE BC-230 | 7 TINE BC-230 | 9 TINE BC-230 | 11 TINE BC-230 |
|---|---|---|---|---|
| Angle Channel | 65 × 8 mm | 65 × 8 mm | 65 × 8 mm | 65 × 8 mm |
| Spring | 10 mm WD, 50 mm OD, 28.5 Coils | 10 mm WD, 50 mm OD, 28.5 Coils | 10 mm WD, 50 mm OD, 28.5 Coils | 10 mm WD, 50 mm OD, 28.5 Coils |
| Tine Forged | 50 × 20 mm | 50 × 20 mm | 50 × 20 mm | 50 × 20 mm |
| Pairs (Flat) | 50 × 8 mm | 50 × 8 mm | 50 × 8 mm | 50 × 8 mm |
| Anchor Pin | 22 mm | 22 mm | 22 mm | 22 mm |
| Nuts | High Tensile | High Tensile | High Tensile | High Tensile |
| Frame Bolt | 1/2 × 1-1/4" | 1/2 × 1-1/4" | 1/2 × 1-1/4" | 1/2 × 1-1/4" |
| Tine Bolt | 5/8 × 2" | 5/8 × 2" | 5/8 × 2" | 5/8 × 2" |
| Linkage | 50 × 12 mm (Rear), 50 × 12 mm (Front) | 50 × 12 mm (Rear), 50 × 12 mm (Front) | 75 × 12 mm (Rear), 50 × 12 mm (Front) | 75 × 12 mm (Rear), 50 × 12 mm (Front) |
| Shovel | 8 mm EN-45 | 8 mm EN-45 | 8 mm EN-45 | 8 mm EN-45 |
| Length | 1160 mm | 1670 mm | 2150 mm | 2440 mm |
| Width | 850 mm | 850 mm | 850 mm | 850 mm |
| Height | 585 mm | 585 mm | 585 mm | 585 mm |
| Tiller Pin | 22 mm | 22 mm | 22 mm | 25 mm |
| Weight | 120 kg | 145 kg | 200 kg | 240 kg |
Rigid Shank Cultivator
ONE ROW 5 SHANK RIGID CULTIVATOR, TWO ROW 9 SHANK RIGID CULTIVATOR, STIFF SHANK CULTIVATOR, ONE ROW RIGID CULTIVATOR, TWO ROW RIGID CULTIVATOR, 1 ROW RIGID SHANK CULTIVATOR, 2 ROW RIGID SHANK CULTIVATOR.
2 Row 9 Shank Rigid Shank Cultivator
1 Row 5 Shank Rigid Shank Cultivator
BROHAWK We are the manufacturer, exporter, supplier, producer of Agriculture implements- Rigid shank cultivator. Rigid shank cultivators are also called as stiff shank cultivators. These cultivators are available in single row and double row cultivators. There are 5 shank in single row cultivators and 9 shanks in double row cultivators. This rigid cultivators are made of 2 ½ “ x 2 ½ angle and its shanks are made of special alloy steel SG Iron. This cultivator has feature of easy adjustable row width as per the requirement. No points are included in this cultivator because any kind of point can be installed on it as a tip for different user. This cultivator has a point mechanism through which you can adjust the tapper of the point from normal tilling to harsh tilling. It comes with 3 point hitch Cat 1. Bearing its flat surface on the top, any kind of attachment can also be installed over its top.
Rigid Shank Cultivator Specification
| Description | One Row Cultivator BRC-S1 | Two Row Cultivator BRC-S2 |
|---|---|---|
| Frame Angle Size | 65 × 8 mm | 65 × 8 mm |
| Length | 1170 mm | 2160 mm |
| Width | 890 mm | 890 mm |
| Height | 1070 mm | 1070 mm |
| Tines | 63 × 22 mm SG Iron | 63 × 22 mm SG Iron |
| Cuffs | SG Iron | SG Iron |
| Stem | Dia 30 mm SG Iron | Dia 30 mm SG Iron |
| Front Linkage | 75 × 12 mm | 75 × 12 mm |
| Back Linkage | 50 × 12 mm | 50 × 12 mm |
| Implement Pin | 22 mm | 22 mm |
The weight and working data contained in this table are supplied for information only and are not binding. Specification and size can be altered as part of ongoing product modification/ improvement.
