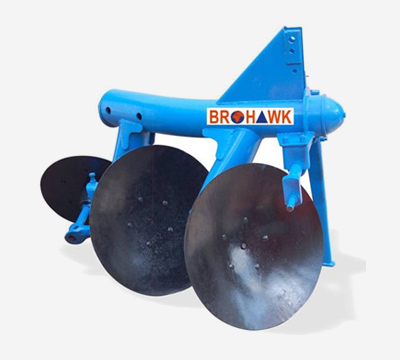

Disc Plough

AGRICULTURE DISC PLOUGH , DISC PLOW, DISC PLOUGH FOR TRACTOR, PLOUGH DISC, DISC PLOW, FARM MACHINERY DISC PLOUGH, TUBLAR TYPE DISC PLOUGH, Y TYPE DISC PLOUGH.

Brohawk – We are the manufacturer, exporter, supplier, producer of disc plough. The disc plough is designed to work in all types of soil for basic functions such as soil breaking, soil raising, soil turning and soil mixing .It is used to open the new fields and to process the stony areas. It can be used easily at rocky and rooted areas. It is especially useful in hard and dry trashy land conditions and in soils where scouring is a major problem.

Inconformity with the soil conditions it is being produced with 2-3 and 4 bottoms version with an option for extra kit for converting it to extra-bottom plough. It is directly mounted to the tractors. Extra heavy-duty pipe frame has high clearance allowing the plough to operate under heavy crop residue.

Tublar Type Disc Plough Specification:

CODE BDP-2 BDP-3 BDP-4 BDP-5 BDP-6
SIZE 2 BOTTAM 3 BOTTAM 4 BOTTAM 5 BOTTAM (4+1) 6 BOTTOM (4+2)
FRAME  (OD 150 mm) Extra Heavy Duty Tubular Frame Extra Heavy Duty Tubular Frame Extra Heavy Duty Tubular Frame Extra Heavy Duty Tubular Frame Extra Heavy Duty Tubular Frame
MOUNTED CAT-II CAT-II CAT-II CAT-II CAT-II
LENGTH 1800 mm 2400 mm 3000 mm 3600 mm 4200 mm
WIDTH 820 mm 1040 mm 1260 mm 1480 mm 1700 mm
HEIGHT 1220 mm 1220 mm 1220 mm 1220 mm 1220 mm
DISCS 660 x 6 mm 660 x 6 mm 660 x 6 mm 660 x 6 mm 660 x 6 mm
DISC SPACING 570 mm 570 mm 570 mm 570 mm 570 mm
COLTER DISC 500 x 5 mm 500 x 5 mm 500 x 5 mm 500 x 5 mm 500 x 5 mm
SCRAPPER 6 mm-adjustable 6 mm-adjustable 6 mm-adjustable 6 mm-adjustable 6 mm-adjustable
BEARINGS 2 Nos. Taper Roller /disc 2 Nos. Taper Roller /disc 2 Nos. Taper Roller /disc 2 Nos. Taper Roller /disc 2 Nos. Taper Roller /disc
WIDTH OF CUT 500-550 mm 875-925 mm 1150-1200 mm 1575-1625 mm 1900-1950 mm
WEIGHT 230 Kg (approx) 330 Kg (approx) 430 Kg (approx) 540 Kg (approx) 650Kg
TRACTOR (HP) 45-50 60-65 75-85 100-110 Above 110

V Type Disc Plough Specification:

CODE BDP-2 BDP-3 BDP-4 BDP-5 BDP-6
SIZE 2 BOTTAM 3 BOTTAM 4 BOTTAM 5 BOTTAM (4+1) 6 BOTTOM (4+2)
FRAME (OD 150 mm) Extra Heavy Duty Square pipe Extra Heavy Duty Square pipe Extra Heavy Duty Square pipe Extra Heavy Duty Square pipe Extra Heavy Duty Square pipe
MOUNTED CAT-II CAT-II CAT-II CAT-II CAT-II
LENGTH 1500 mm 1900 mm 2300 mm 2700 mm 3100 mm
WIDTH 820 mm 1040 mm 1260 mm 1480 mm 1700 mm
HEIGHT 1270 mm 1270 mm 1270 mm 1270 mm 1270 mm
DISCS 660 x 6 mm 660 x 6 mm 660 x 6 mm 660 x 6 mm 660 x 6 mm
DISC SPACING Adjustable Adjustable Adjustable Adjustable Adjustable
COLTER DISC 500 x 5 mm 500 x 5 mm 500 x 5 mm 500 x 5 mm 500 x 5 mm
SCRAPPER 6 mm-adjustable 6 mm-adjustable 6 mm-adjustable 6 mm-adjustable 6 mm-adjustable
BEARINGS 2 Nos. Taper Roller /disc 2 Nos. Taper Roller /disc 2 Nos. Taper Roller /disc 2 Nos. Taper Roller /disc 2 Nos. Taper Roller /disc
WEIGHT 250 kg 350 kg 450 kg 560 kg 670 kg
TRACTOR (HP) 45-50 60-65 75-85 100-110 Above 110
